LIMBUS D MONO SUSPENSION LAMP
Design
Emanuele Ricci
Description

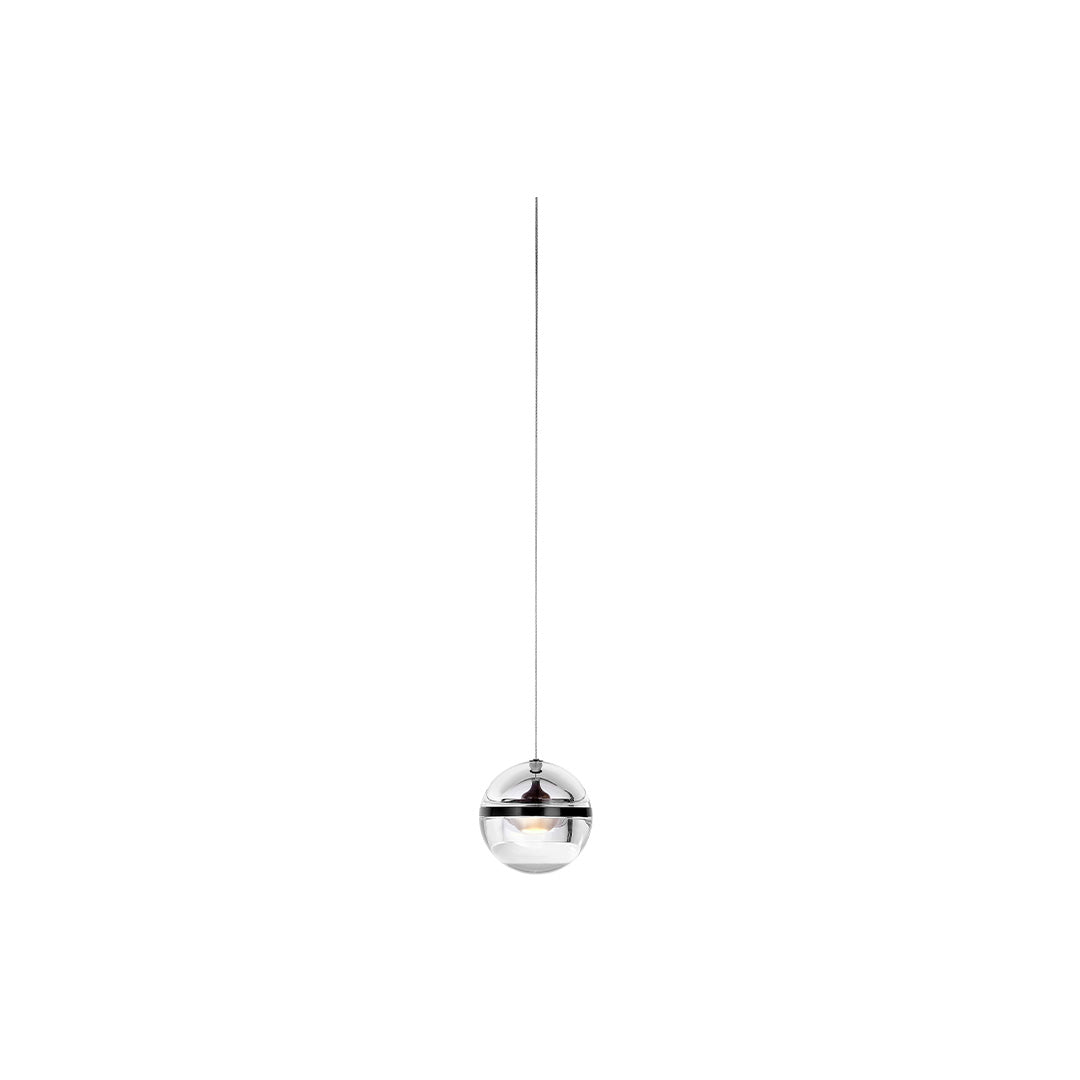

Limbus is a suspension lamp for direct light designed to illuminate without glare. A glass sphere encloses, like a small cosmos, all the optical and electronic elements, which are used to generate and manage light and as heat sink. Limbus is created to be used individually (dimmable or ON/OFF version) or in a cluster (modular version). Suspension LED lamp with 5W power, double molded glass diffuser, optical system and aluminium CNC body lamp. Suspension with diffuser made of pressed glass very accurately shaped, working as an optical lens. The metal parts are made in lathed aluminium. 1-10V dimming or DALI dimming available.
TECHNICAL DETAILS: • High Color Rendering Index • Correlated Color Temperature 3000K or 2700K • Energy Class A++ • Dimmable • Dali system compatible • Insulation Class I • CE listed
LIGHT EMISSION: • Light emission: diffuse • Light direction: downlight • Light source: led board • Source flux: 350 lm • Emitted flux: 233 lm • Efficacy: 39 lm/W: • CCT: 3000K • CRI index: >90 • Lifetime: >50000h L70 @ 25°C
ELECTRICAL FACTS: • Source power: 4 W • Power absorbtion: 5 W • Stand-by absorbtion: < 2 W • Grid voltage: 100–240V AC/50-60Hz • Power supply: multiplug AC-DC converter provided • Dimmability: 1-10V, DALI dimmable • Energy class: A++.
TECHNICAL DATA: • Environment: indoor • Placement: pendant • Net weight: 2,8 Kg • Certifications: CE • Suggested ambient T: 25°C • Maximum ambient T: 40°C • Insulation class: III • Protection class: IP20
Delivery date:
Couldn't load pickup availability
LIMBUS D MONO SUSPENSION LAMP
